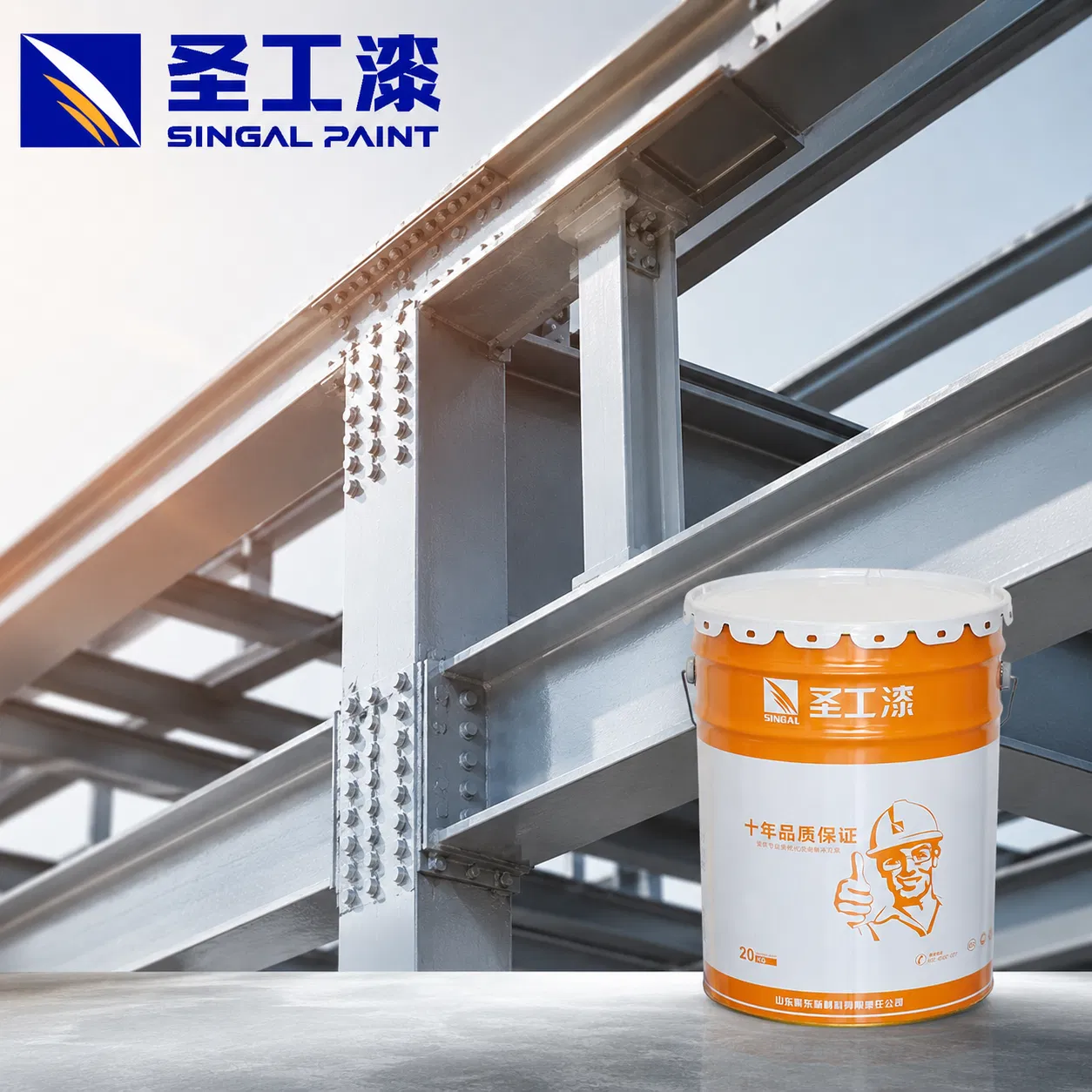

FD-H001 Epoxy Paint Primer for Optimal Surface Preparation

Name: FD-H001 Epoxy Paint Primer for Optimal Surface Preparation
SKU: MIC-sGnRvQwcbbpo

FD-H001 two-component epoxy primer for steel substrates.

Reference price (FOB)

US $4-10 / kg

Quantity	Reference price
100-9,999 kg	USD 10.00 / kg
10,000-999,999 kg	USD 8.00 / kg
1,000,000+ kg	USD 4.00 / kg

Minimum order: 100 kg

Confirm the specification, quantity and shipping terms for your quotation.

Request a Quote

CategoriesAnti-Corrosion Coatings Primers

Product specifications

Model NO.: FD-H001
Main Raw Material: Epoxy
Method: Spray
Level: Primer
Drying Method: Air Drying
Substrate: Steel
Components: Film Forming Matter
Formation Mechanism: Conversion Type
Luster: Matt
Weight: 20kg/Barrel
Construction Method: High Pressure Airless Spray, Air Spray, Brush, Rol
Coating Thickness: Wet Film:80um Dry Film: 40um
After Sales Service: 5 Years
Transport Package: Barrel Package in Pallet
Specification: 35*30
Trademark: signal
Origin: Dongying China
HS Code: 3208100000
Production Capacity: 50000ton/Year
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg
Lead Time: 7 days (1 - 1000 kg) To be negotiated ( > 1000 kg)
Number of components: Two-component
Color: Grey
Proportion: About 2.40
Dry Time: 23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio: 10:1
Coating thickness: Wet film:80um Dry film: 40um
Construction methord: High pressure airless spray, air spray, brush, roller
Shelf life: 12 months

Packaging & shipping

Transport Package: Barrel Package in Pallet
Specification: 35*30
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg

Product description

Product Description

Product Name: Steel Structure Anti-Corrosion Epoxy Zinc Rich Primer Paint

1.Introduction:

Epoxyzinc_-richprimerisatwo_-componentcoatingwithepoxyresinasthebasematerial, phosphorironpowder,rust-proofpigment,etc., and cured by polyamide.It ispacked by dual componentsAand B.Characteristics:Highshielding property, superioranti-rustproperty, strongadhesion, and good oilandwaterresistance.

Number of components	Two-component
Color	Grey
Proportion	About 2.40
Dry Time	23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio	10:1
Coating thickness	Wet film:80um Dry film: 40um
Construction methord	High pressure airless spray, air spray, brush, roller
Shelf life	12 months

2.Surface treatment:
The steel surface is meticulously prepared by shot or sand blasting to the impeccable Sa2.5 level, or carefully rust-removed manually to achieve the St3 standard.

3.Construction conditions:
Ensure the substrate temperature is at least 3°C above the dew point, with relative humidity not exceeding 85%, and wind force maintained at or below level 3. When the substrate temperature drops below 5°C, the reaction between epoxy resin and curing agent ceases, halting construction. Outdoor work should avoid adverse conditions such as rain, fog, wind, sand, and condensation during morning and evening hours.

4.Notes:
1. Prior to application, vigorously stir component A using mechanical methods until thoroughly uniform, then blend seamlessly with component B for optimal results.
2. Consistently stir the mixture throughout the coating process to avert sedimentation, thereby maintaining the proper powder to liquid ratio and ensuring the highest quality paint film.
3. For best outcomes, the dry film thickness should be maintained at or above 70μm, completing the application in one to two coats.
4. Post-mixing, the two-component paint should ideally be utilized within 5 hours to preserve coating quality.
5. Ensure the curing agent is securely sealed and used promptly after opening to prevent losses due to reactions with atmospheric moisture.
