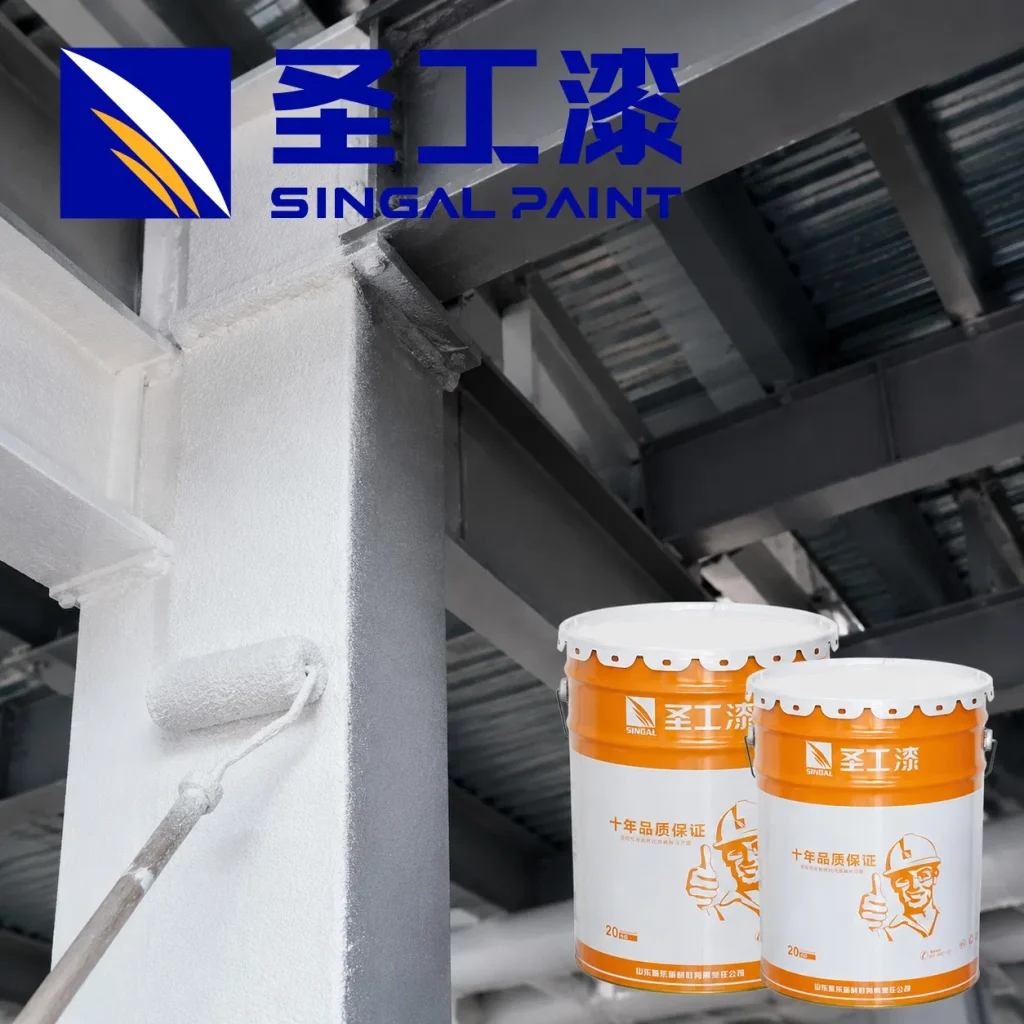

FD-H001 Epoxy Zinc Coating - Ideal for Air Spray, Brush, and Roll

Name: FD-H001 Epoxy Zinc Coating - Ideal for Air Spray, Brush, and Roll
SKU: MIC-fAGUSZjcCbRe

FD-H001 two-component epoxy anti-corrosion coating for steel substrates.

Reference price (FOB)

US $2-10 / kg

Quantity	Reference price
100-999 kg	USD 10.00 / kg
1,000-999,999 kg	USD 6.00 / kg
1,000,000+ kg	USD 2.00 / kg

Minimum order: 100 kg

Confirm the specification, quantity and shipping terms for your quotation.

Request a Quote

CategoriesAnti-Corrosion Coatings

Product specifications

Model NO.: FD-H001
Main Raw Material: Epoxy
Method: Spray
Level: Primer
Drying Method: Air Drying
Substrate: Steel
Components: Film Forming Matter
Formation Mechanism: Conversion Type
Luster: Matt
Weight: 20kg/Barrel
Construction Method: High Pressure Airless Spray, Air Spray, Brush, Rol
Coating Thickness: Wet Film:80um Dry Film: 40um
After Sales Service: 5 Years
Transport Package: Barrel Package in Pallet
Specification: 35*30
Trademark: Signal
Origin: Dongying China
HS Code: 3208100000
Production Capacity: 50000ton/Year
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg
Lead Time: 7 days (1 - 1000 kg) To be negotiated ( > 1000 kg)
Number of components: Two-component
Color: Grey
Proportion: About 2.40
Dry Time: 23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio: 10:1
Coating thickness: Wet film:80um Dry film: 40um
Construction methord: High pressure airless spray, air spray, brush, roller
Shelf life: 12 months

Packaging & shipping

Transport Package: Barrel Package in Pallet
Specification: 35*30
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg

Product description

Product Description

Product Name: Epoxy Zinc Primer Anti Corrosive Coating for Chemical Plant Safety and Durability

1. Introduction:

Epoxyzinc_-richprimerisatwo_-componentcoatingwithepoxy resinasthebasematerial, phosphorironpowder,rust-proofpigment,etc., and cured by polyamide.It ispacked by dual componentsAand B.Characteristics:Highshielding property, superioranti-rustproperty, strongadhesion, and good oilandwaterresistance.

Number of components	Two-component
Color	Grey
Proportion	About 2.40
Dry Time	23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio	10:1
Coating thickness	Wet film:80um Dry film: 40um
Construction methord	High pressure airless spray, air spray, brush, roller
Shelf life	12 months

2. Surface treatment:
The steel surface is meticulously prepared, achieving an impeccable Sa2.5 level through shot or sand blasting, or manually refined to a pristine St3 level.

3. Construction conditions:
Ensure optimal conditions with substrate temperatures maintaining a 3°C elevation above the dew point and relative humidity below 85%, with wind force not exceeding level 3. Halt construction when substrate temperatures dip below 5°C, as the epoxy resin and curing agent react sluggishly. Steer clear of rainy, foggy, windy, or sandy weather conditions, and morning and evening condensation for outdoor applications.

4. Notes:
1. Prior to application, mix component A thoroughly with mechanical stirring, ensuring a harmonious blend before incorporating component B.
2. Maintain consistent agitation throughout the coating process to avert sedimentation and maintain a balanced powder to liquid ratio, preserving the superior quality of the paint film.
3. Aim for a dry film thickness of ≥70μm, with 1 to 2 coats for optimal coverage.
4. Utilize the two-component paint within 5 hours of mixing to ensure peak efficacy; delays could compromise coating quality.
5. Once the curing agent is opened, seal it tightly after use and consume promptly to avoid detrimental reactions with ambient moisture.
