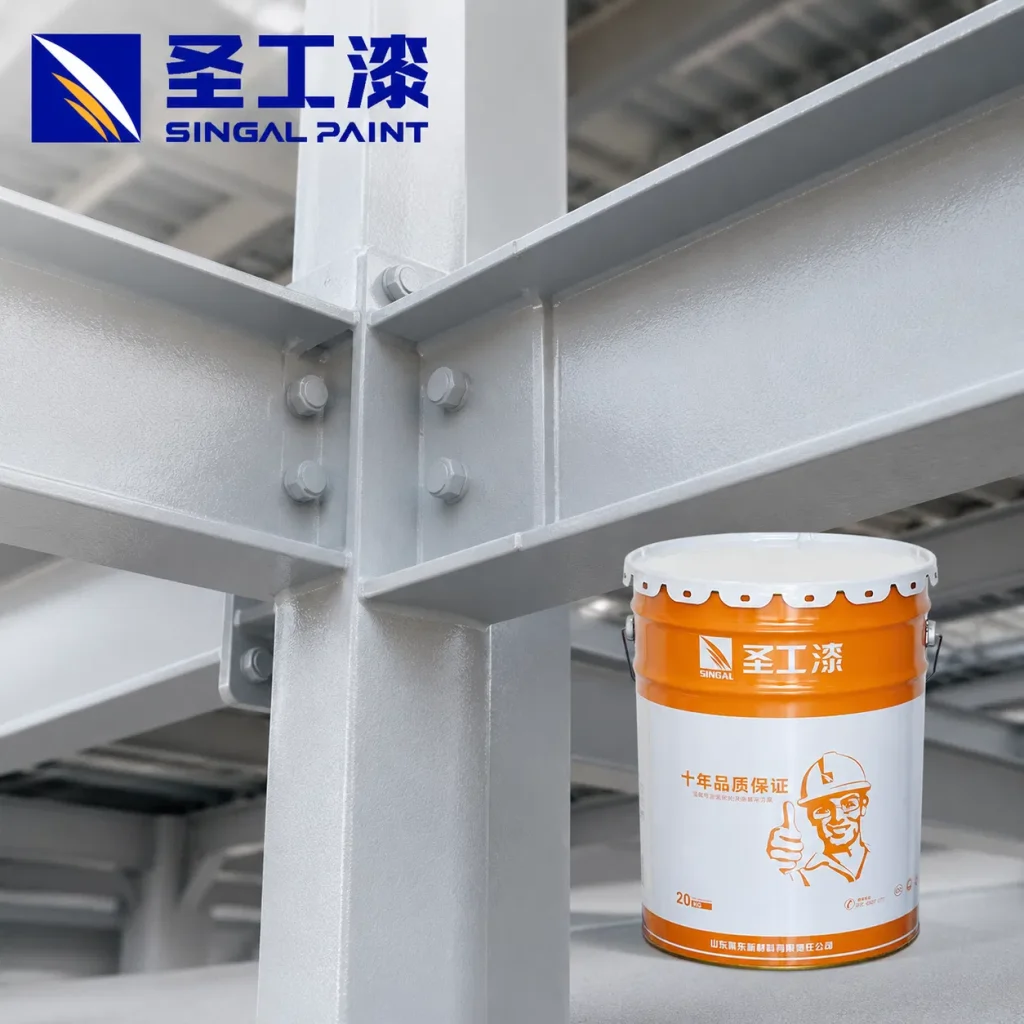

FD-H001 Matt Epoxy Paint Primer for High Pressure Applications

Name: FD-H001 Matt Epoxy Paint Primer for High Pressure Applications
SKU: MIC-BanrmyZEJqRk

FD-H001 two-component epoxy primer for steel substrates.

Reference price (FOB)

US $4-10 / kg

Quantity	Reference price
100-9,999 kg	USD 10.00 / kg
10,000-999,999 kg	USD 8.00 / kg
1,000,000+ kg	USD 4.00 / kg

Minimum order: 100 kg

Confirm the specification, quantity and shipping terms for your quotation.

Request a Quote

CategoriesAnti-Corrosion Coatings Primers

Product specifications

Model NO.: FD-H001
Main Raw Material: Epoxy
Method: Spray
Level: Primer
Drying Method: Air Drying
Substrate: Steel
Components: Film Forming Matter
Formation Mechanism: Conversion Type
Luster: Matt
Weight: 20kg/Barrel
Construction Method: High Pressure Airless Spray, Air Spray, Brush, Rol
Coating Thickness: Wet Film:80um Dry Film: 40um
After Sales Service: 5 Years
Transport Package: Barrel Package in Pallet
Specification: 35*30
Trademark: signal
Origin: Dongying China
HS Code: 3208100000
Production Capacity: 50000ton/Year
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg
Lead Time: 7 days (1 - 1000 kg) To be negotiated ( > 1000 kg)
Number of components: Two-component
Color: Grey
Proportion: About 2.40
Dry Time: 23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio: 10:1
Coating thickness: Wet film:80um Dry film: 40um
Construction methord: High pressure airless spray, air spray, brush, roller
Shelf life: 12 months

Packaging & shipping

Transport Package: Barrel Package in Pallet
Specification: 35*30
Package Size: 30.00cm * 30.00cm * 35.00cm
Package Gross Weight: 20.000kg

Product description

Product Description

Product Name: Steel Structure Anti-Corrosion Epoxy Zinc Rich Primer Paint

1.Introduction:

This extraordinary Epoxycontaining zinc_-richprimerisa remarkabletwo_-componentcoatingcrafted with premiumepoxy resinasthefoundationmaterial, enhanced with phosphorironpowder,rust-proofpigment,and further fortified by polyamide for optimal protection.It isingeniously packed by dual componentsAand B.Characteristics:Exhibits highshielding properties with superioranti-rustcapability, strongadhesion, along with excellent oilandwaterresistance, ensuring durability.

Number of components	Two-component
Color	Grey
Proportion	About 2.40
Dry Time	23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio	10:1
Coating thickness	Wet film:80um Dry film: 40um
Construction methord	High pressure airless spray, air spray, brush, roller
Shelf life	12 months

2.Surface treatment:
Prepare the steel surface by either shot blasting or sandblasting to the impeccable Sa2.5 level, or manually rust-remove to achieve the St3 level.

3.Construction conditions:
Ensure the substrate temperature exceeds the dew point by 3°C, with relative humidity below 85%, and wind force no greater than level 3. If the substrate temperature drops below 5°C, the epoxy resin and curing agent will cease to react, and construction should be halted. Avoid rainy, foggy, or windy and sandy days, as well as morning and evening condensation, for any outdoor construction projects.

4.Notes:
1. Prior to application, use mechanical stirring to thoroughly mix component A, then blend it evenly with component B.
2. Continually stir during the coating process to prevent sedimentation, ensuring the powder-to-liquid ratio remains balanced for optimum paint film quality.
3. For best results, the dry film thickness should be maintained at ≥70μm, with 1 to 2 coats being optimal.
4. Once mixed, utilize the two-component paint within 5 hours to maintain coating quality.
5. After using the curing agent, ensure it is tightly sealed and consumed promptly to prevent losses from reactions with air moisture.
