Model: FD-H001

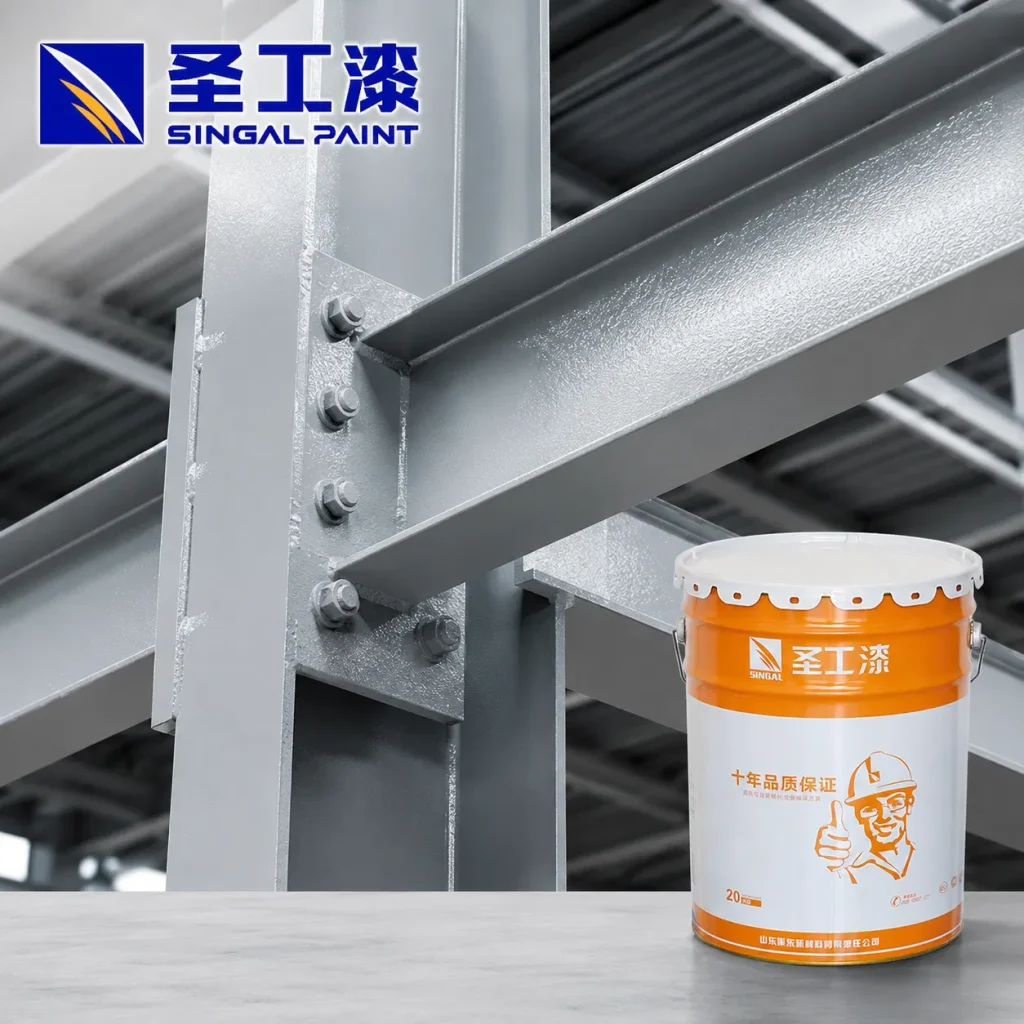

FD-H001 Matt Finish Epoxy Coating - 20kg, High Pressure Airless Spray Compatible

FD-H001 two-component epoxy anti-corrosion coating for steel substrates. Supplied in liquid form.

Reference price (FOB)

US $2-10 / kg

QuantityReference price
100-999 kgUSD 10.00 / kg
1,000-999,999 kgUSD 6.00 / kg
1,000,000+ kgUSD 2.00 / kg

Minimum order: 100 kg

Confirm the specification, quantity and shipping terms for your quotation.

Request a Quote

Product specifications

Model NO.
FD-H001
Color
Grey
Appearance
Liquid
Main Raw Material
Epoxy
Method
Spray
Level
Primer
Drying Method
Air Drying
Substrate
Steel
Components
Film Forming Matter
Formation Mechanism
Conversion Type
Luster
Matt
Weight
20kg/Barrel
Construction Method
High Pressure Airless Spray, Air Spray, Brush, Rol
Coating Thickness
Wet Film:80um Dry Film: 40um
After Sales Service
5 Years
Trademark
signal
Transport Package
Barrel Package in Pallet
Specification
35*30
Origin
Dongying China
HS Code
3208100000
Customization
Available
Production Capacity
50000ton/Year
Package Size
30.00cm * 30.00cm * 35.00cm
Package Gross Weight
20.000kg
Lead Time
7 days (1 - 1000 kg) To be negotiated ( > 1000 kg)
Number of components
Two-component
Proportion
About 2.40
Dry Time
23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio
10:1
Coating thickness
Wet film:80um Dry film: 40um
Construction methord
High pressure airless spray, air spray, brush, roller
Shelf life
12 months

Packaging & shipping

Transport Package
Barrel Package in Pallet
Specification
35*30
Package Size
30.00cm * 30.00cm * 35.00cm
Package Gross Weight
20.000kg

Product description

Product Description

Product Name: Factory Price Double Component Epoxy Anti Corrosive Primer Coating

1.Introduction:

Epoxyzinc-richprimerisatwo-componentcoatingwithepoxy resinasthebasematerial, phosphorironpowder,rust-proofpigment,etc., and cured by polyamide.It ispacked by dual componentsAand B.Characteristics:Highshielding property, superioranti-rustproperty, strongadhesion, and good oilandwaterresistance.
Number of components Two-component
Color Grey
Proportion About 2.40
Dry Time 23±2°C   Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio 10:1
Coating thickness Wet film:80um   Dry film: 40um
Construction methord High pressure airless spray, air spray, brush, roller
Shelf life 12 months

2.Surface treatment:
To ensure maximum protection, the steel surface is shot blasted or sand blasted to Sa2.5 level, or rust is meticulously removed manually to St3 level.

3.Construction conditions:
For optimal results, the substrate temperature should be 3°C above the dew point, with relative humidity below 85%, and wind force not exceeding level 3. If the substrate temperature drops below 5°C, the epoxy resin and curing agent will halt reaction, requiring a pause in construction. Refrain from outdoor activities during rainy, foggy, windy, and sandy conditions, and avoid morning and evening condensation.

4.Notes:
1. Prior to use, ensure component A is thoroughly mixed using mechanical stirring, then combine evenly with component B for consistent quality.
2. Continuously stir during the coating process to prevent sedimentation, which can disrupt the powder-to-liquid ratio, compromising the paint film's excellence.
3. Aim for a dry film thickness of at least 70μm, achieved with 1 to 2 coats.
4. Once mixed, utilize the two-component paint within 5 hours to maintain optimal coating quality.
5. Securely cover the curing agent after use and deplete it promptly to prevent reaction with ambient water vapor, safeguarding against potential losses.
