Model: FD-H001

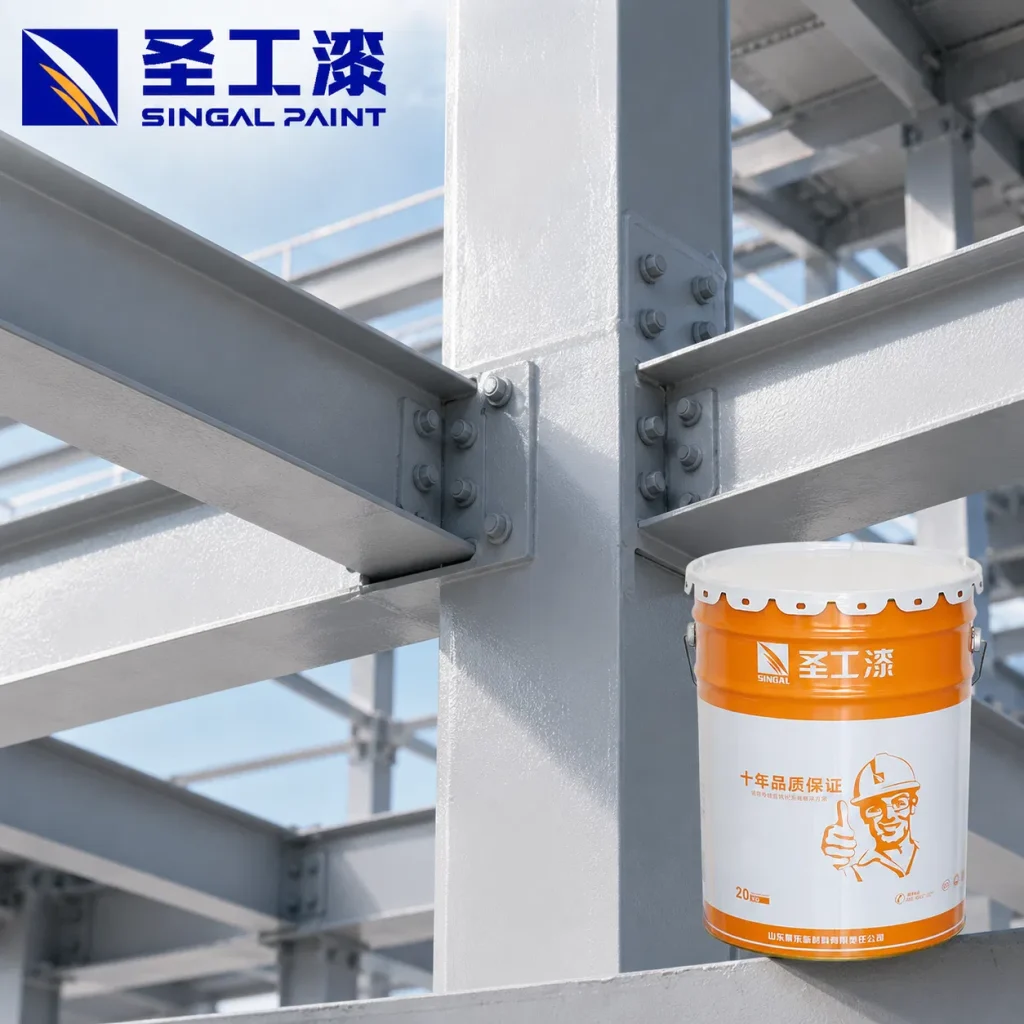

FD-H001 Zinc Epoxy Primer Coating for Steel Buildings: Anti-Corrosion Protection

FD-H001 two-component epoxy primer for steel substrates.

Reference price (FOB)

US $4-10 / kg

QuantityReference price
100-9,999 kgUSD 10.00 / kg
10,000-999,999 kgUSD 8.00 / kg
1,000,000+ kgUSD 4.00 / kg

Minimum order: 100 kg

Confirm the specification, quantity and shipping terms for your quotation.

Request a Quote

Product specifications

Model NO.
FD-H001
Main Raw Material
Epoxy
Method
Spray
Level
Primer
Drying Method
Air Drying
Substrate
Steel
Components
Film Forming Matter
Formation Mechanism
Conversion Type
Luster
Matt
Weight
20kg/Barrel
Construction Method
High Pressure Airless Spray, Air Spray, Brush, Rol
Coating Thickness
Wet Film:80um Dry Film: 40um
After Sales Service
5 Years
Transport Package
Barrel Package in Pallet
Specification
35*30
Trademark
signal
Origin
Dongying China
HS Code
3208100000
Production Capacity
50000ton/Year
Package Size
30.00cm * 30.00cm * 35.00cm
Package Gross Weight
20.000kg
Lead Time
7 days (1 - 1000 kg) To be negotiated ( > 1000 kg)
Number of components
Two-component
Color
Grey
Proportion
About 2.40
Dry Time
23±2°C Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio
10:1
Coating thickness
Wet film:80um Dry film: 40um
Construction methord
High pressure airless spray, air spray, brush, roller
Shelf life
12 months

Packaging & shipping

Transport Package
Barrel Package in Pallet
Specification
35*30
Package Size
30.00cm * 30.00cm * 35.00cm
Package Gross Weight
20.000kg

Product description

Product Description

Product Name: Hot Sales High-Performance Anti Rust Zinc Epoxy Primer for Steel Buildings

FD-H001 Zinc Epoxy Primer Coating for Steel Buildings: Anti-Corrosion Protection
1.Introduction:

Epoxyzinc-richprimerisatwo-componentcoatingwithepoxyresinasthebasematerial, phosphorironpowder,rust-proofpigment,etc., and cured by polyamide.It ispacked by dual componentsAand B.Characteristics:Highshielding property, superioranti-rustproperty, strongadhesion, and good oilandwaterresistance.
Number of components Two-component
Color Grey
Proportion About 2.40
Dry Time 23±2°C   Surface dry time ≤30min, Through dry time ≤24h, Fully cured 7 days
Mixing ratio 10:1
Coating thickness Wet film:80um   Dry film: 40um
Construction methord High pressure airless spray, air spray, brush, roller
Shelf life 12 months

2.Surface treatment:
The steel surface is meticulously prepared, achieving a flawless Sa2.5 level through shot blasting or sand blasting, or a pristine St3 level via manual rust removal.

3.Construction conditions:
For optimal application, ensure that the substrate temperature exceeds the dew point by at least 3°C. Maintain relative humidity below 85% and wind force at or below level 3. Do not proceed with construction if the substrate temperature falls below 5°C, as this inhibits the reaction between the epoxy resin and curing agent. Avoid construction during inclement weather conditions such as rain, fog, or strong winds, and prevent any condensation during morning or evening for exterior projects.

4.Notes:
1. Prior to application, vigorously blend component A using mechanical stirring to ensure uniformity before combining with component B.
2. Consistently stir the mixture during application to avoid sedimentation, which may disrupt the powder-to-liquid ratio, compromising the integrity of the paint film.
3. For best results, aim for a dry film thickness of at least 70μm, typically achieved with 1 to 2 coats.
4. Post-mixing, utilize the entire batch of the two-component paint within 5 hours to maintain superior coating quality.
5. After using the curing agent, secure it promptly to avoid exposure to air, which could result in reaction with water vapor and potential product loss.
